INVERTER BATTERIES
TT60S120-Tall Tubular Battery
Warranty : 60 Months* |
| T&C Apply |
| Tall Tubular Technology |
| Deep Cycle Design,1000 cycles @ 80% DOD |
| Tower type design with common side venting |
| Easy Maintenance |
| Capacity @ C20120 AH |
| Battery Dimension |
| (In mm, LXBXH)535x215x480 |
| Battery Weight55.00 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Sine Pro Cu |
TT60S150-Tall Tubular Battery
Warranty : 60 Months* |
| T&C Apply |
| Tall Tubular Technology |
| Deep Cycle Design,1000 cycles @ 80% DOD |
| Tower type design with common side venting |
| Easy Maintenance |
| Capacity @ C20150 AH |
| Battery Dimension |
| (In mm, LXBXH)535x215x480 |
| Battery Weight59.00 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Sine Pro Cu |
TT60S180-Tall Tubular Battery
Warranty : 60 Months* |
| T&C Apply |
| Tall Tubular Technology |
| Deep Cycle Design,1000 cycles @ 80% DOD |
| Tower type design with common side venting |
| Easy Maintenance |
| Capacity @ C20180 AH |
| Battery Dimension |
| (In mm, LXBXH)535x215x480 |
| Battery Weight61.00 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Sine Pro Cu |

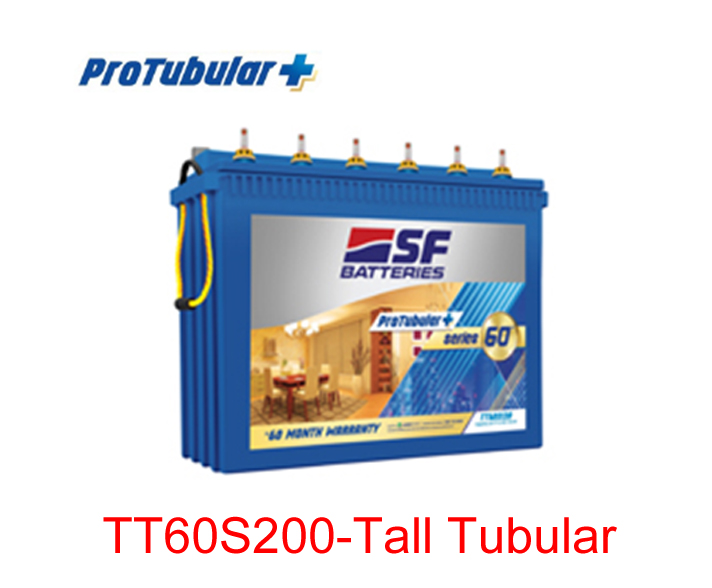

TT60S200-Tall Tubular Battery
Warranty : 60 Months* |
| T&C Apply |
| Tall Tubular Technology |
| Deep Cycle Design,1000 cycles @ 80% DOD |
| Tower type design with common side venting |
| Easy Maintenance |
| Capacity @ C20200 AH |
| Battery Dimension |
| (In mm, LXBXH)535x215x480 |
| Battery Weight66.00 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Sine Pro Cu |
TT60S220-Tall Tubular Battery
Warranty : 60 Months* |
| T&C Apply |
| Tall Tubular Technology |
| Acts as coolant, Ensures low maintenance |
| Electrolyte level indicator |
| Withstands overcharge. |
| Capacity @ C20220 AH |
| Battery Dimension |
| (In mm, LXBXH)535x215x480 |
| Battery Weight70.00 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Sine Pro Cu |
TT60S260-Tall Tubular Battery
Warranty : 60 Months* |
| T&C Apply |
| Tall Tubular Technology |
| Acts as coolant, Ensures low maintenance |
| Suited for use in areas of frequent power cuts 1200 cycles at 80% DOD |
| Withstands overcharge. |
| Capacity @ C20260 AH |
| Battery Dimension |
| (In mm, LXBXH)535x215x480 |
| Battery Weight78.00 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Sine Pro Cu |
ST60S100-Tubular Battery
Warranty : 60 Months* |
| T&C Apply |
| Short Tubular Technology |
| Short Height Range, tubular plate design |
| Deep Cycle Design 1000+ cycles @ 80% DOD |
| Can handle long power outages |
| Capacity @ C20100 AH |
| Battery Dimension |
| (In mm, LXBXH)555x250x350 |
| Battery Weight44.00 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Sine Pro Cu |
ST60S150-Tubular Battery
Warranty : 60 Months* |
| T&C Apply |
| Short Tubular Technology |
| Short Height Range, tubular plate design |
| Deep Cycle Design 1000+ cycles @ 80% DOD |
| Can handle long power outages |
| Capacity @ C20150 AH |
| Battery Dimension |
| (In mm, LXBXH)555x250x350 |
| Battery Weight52.00 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Sine Pro Cu |
TT48S150-Tall Tubular Battery
Warranty : 48 Months* |
| T&C Apply |
| Tall Tubular Technology |
| Unique feature and superior technology |
| Easy Maintenance, handling |
| Fumes and Leak Resistance |
| Capacity @ C20150 AH |
| Battery Dimension |
| (In mm, LXBXH)535x215x480 |
| Battery Weight58.00 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Sine Pro Cu |
TT48S200-Tall Tubular Battery
Warranty : 48 Months* |
| T&C Apply |
| Tall Tubular Technology |
| Unique feature and superior technology |
| Easy Maintenance, handling |
| Fumes and Leak Resistance |
| Capacity @ C20200 AH |
| Battery Dimension |
| (In mm, LXBXH)535x215x480 |
| Battery Weight61.00 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Sine Pro Cu |
ST42S135-Tubular Battery
Warranty : 42 Months* |
| T&C Apply |
| Short Tubular Technology |
| Deep Cycle Design 800+ cycles @ 80% DOD |
| Can Handle long power outages |
| Short Height Range, tubular plate design |
| Capacity @ C20135 AH |
| Battery Dimension |
| (In mm, LXBXH)555x250x350 |
| Battery Weight45.00 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Sine Pro Cu |

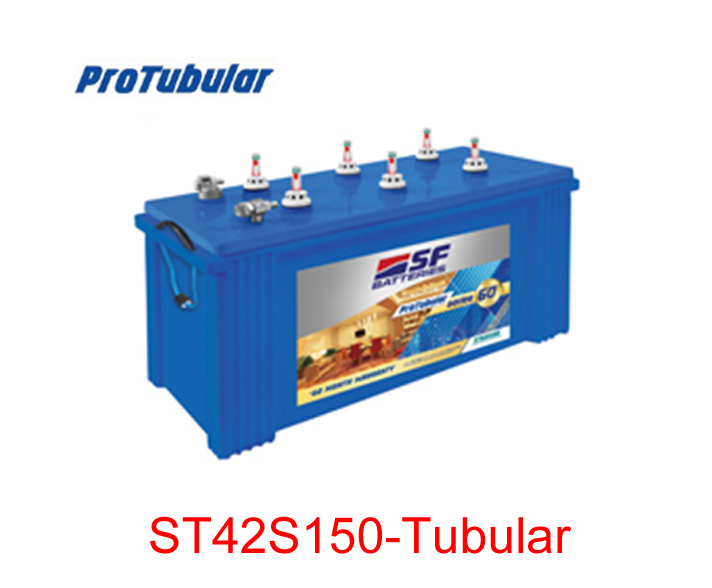

ST42S150-Tubular Battery
Warranty : 42 Months* |
| T&C Apply |
| Short Tubular Technology |
| Deep Cycle Design 800+ cycles @ 80% DOD |
| Can Handle long power outages |
| Short Height Range, tubular plate design |
| Capacity @ C20150 AH |
| Battery Dimension |
| (In mm, LXBXH)555x250x350 |
| Battery Weight50.00 ±1% |
| Best for residential and commercial usage. Use alongside with SF Powersmart /Sine Pro Cu |
ST42S1350-Tubular Battery
Warranty : 42 Months* |
| T&C Apply |
| Short Tubular Technology |
| Easy Maintenance |
| Easy Handling / Spill Proof |
| Fumes and Leak Resistance |
| Capacity @ C20 -NA |
| Battery Dimension |
| (In mm, LXBXH)555x250x350 |
| Battery Weight47.00 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Sine Pro Cu |

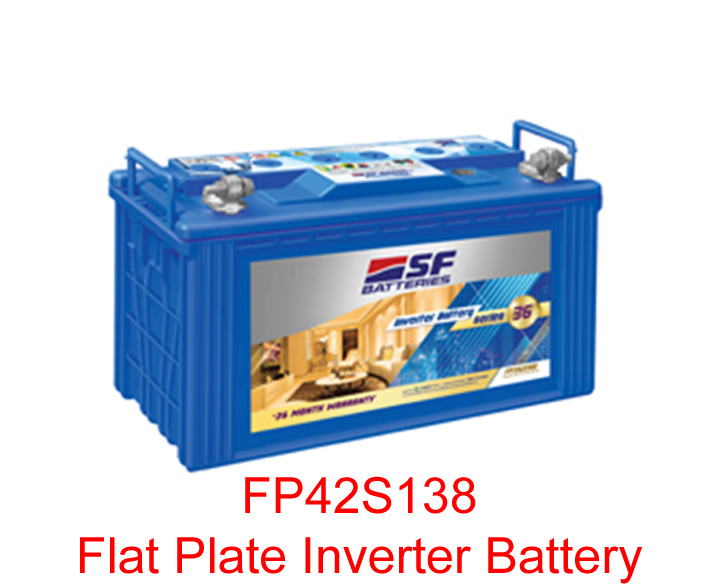

FP42S138-Flat Plate Inverter Battery
Warranty : 42 Months* |
| T&C Apply |
| Hybrid Alloy Long Service Life |
| Short/Fast Re-Charge Time |
| Thicker Grid Plates with Pocket Separators |
| Level Indicators enable easy Maintenance |
| Capacity @ C20138 AH |
| Battery Dimension |
| (In mm, LXBXH)523x230x280 |
| Battery Weight40.40 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Pro |
FP42S138 - Flat Plate Inverter Battery
Warranty : 36 Months* |
| T&C Apply |
| Hybrid Alloy Long Service Life |
| Short/Fast Re-Charge Time |
| Thicker Grid Plates with Pocket Separators |
| Level Indicators enable easy Maintenance |
| Capacity @ C2088 AH |
| Battery Dimension |
| (In mm, LXBXH)420x180x274 |
| Battery Weight26.20 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Pro |
FP36S100 - Flat Plate Inverter Battery
Warranty : 36 Months* |
| T&C Apply |
| Hybrid Alloy Long Service Life |
| Short/Fast Re-Charge Time |
| Thicker Grid Plates with Pocket Separators |
| Level Indicators enable easy Maintenance |
| Capacity @ C20100 AH |
| Battery Dimension |
| (In mm, LXBXH)420x180x274 |
| Battery Weight27.40 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Pro |
FP36S150 - Flat Plate Inverter Battery
Warranty : 36 Months* |
| T&C Apply |
| Hybrid Alloy Long Service Life |
| Short/Fast Re-Charge Time |
| Thicker Grid Plates with Pocket Separators |
| Level Indicators enable easy Maintenance |
| Capacity @ C20150 AH |
| Battery Dimension |
| (In mm, LXBXH)515x230x266 |
| Battery Weight41.20 ±1% |
| Best for residential and commercial usage. |
| Use alongside with SF Powersmart /Pro |
Home UPS
POWER SMART - HF00-SNPROCU900
Key Features |
Warranty : 36 Month Warranty |
| High Quality Pure Sine Wave |
| 100% Copper Transformer |
| 2 Stage Intelligent ASIC Charging |
| LCD & LED - Dual Display |
| Tri Colour LCD Display |
| Yellow Colour - For Operation is in Back-up mode |
| Green Colour - For Operation is in Charging Mode |
| Red Colour - For any Protection |
| AC MCB for Mains Overload Protection |
| Suitable for Mains Low Voltage Operations, 8-10 AMP Charging at 120V Mains Input |
| Great Power Saving |
| Manuals Mains Bypass Facility |
| Wide Range of Mains Input Voltage for Battery Charging i.e. 90V - 300V AC |
|
Specification |
|
| Description |
|
| Output Voltage at No Load |
220V ± 7V AC |
| Output Frequency |
50Hz ± 1Hz |
| Output Wave Form |
Pure Sine Wave |
| Nominal Battery Voltage |
12V DC |
| Battery Low Cut Off |
10.5V ± 0.2V DC |
| VA |
850 |
| Inverter Dimension |
340X320X180 |
| Inverter Weight |
11 kgs |
|
Charging Mode |
| Description |
|
| Maximum ChargingCurrent (NC) |
12Amp ± 1Amp |
| Maximum ChargingCurrent (NC) |
17Amp ± 1Amp |
| Boost Charging Voltage |
14.4V ± 0.2V DC |
| Tickle Charging Voltage |
13.7V ± 0.2V DC |
| Charging Currentat 120V Mains Input |
8 - 10 Amp Charging Current* (*Depends Upon Battery Voltage) |
| Change Over TimeMains to Back-Up (@ UPS Mode) |
≤ 10 msec |
| Change Over TimeBack-up to Mains (@ UPS Mode) |
≤ 10 msec |
| Change Over TimeMains to Back-up (@ Normal Mode) |
≤ 40 msec |
| Change Over TimeBack-up to Mains (@ Normal Mode) |
≤ 10 msec |
| Input Voltage Range(@ Normal Mode) |
90V - 300V ± 10V AC |
POWER SMART -HF00-SNPROCU1200
Key Features |
Warranty : 36 Month |
| High Quality Pure Sine Wave |
| 100% Copper Transformer |
| 2 Stage Intelligent ASIC Charging |
| LCD & LED - Dual Display |
| Tri Colour LCD Display |
| Yellow Colour - For Operation is in Back-up mode |
| Green Colour - For Operation is in Charging Mode |
| Red Colour - For any Protection |
| AC MCB for Mains Overload Protection |
| Suitable for Mains Low Voltage Operations, 8-10 AMP Charging at 120V Mains Input |
| Great Power Saving |
| Manuals Mains Bypass Facility |
| Wide Range of Mains Input Voltage for Battery Charging i.e. 90V - 300V AC |
Specification |
| Description |
|
| Output Voltage at No Load |
220V ± 7V AC |
| Output Frequency |
50Hz ± 1Hz |
| Output Wave Form |
Pure Sine Wave |
| Nominal Battery Voltage |
12V DC |
| Battery Low Cut Off |
10.5V ± 0.2V DC |
| VA |
1050 |
| Inverter Dimension |
340X320X180 |
| Inverter Weight |
12 kgs |
Charging Mode |
| Description |
|
| Maximum ChargingCurrent (NC) |
12Amp ± 1Amp |
| Maximum ChargingCurrent (NC) |
17Amp ± 1Amp |
| Boost Charging Voltage |
14.4V ± 0.2V DC |
| Tickle Charging Voltage |
13.7V ± 0.2V DC |
| Charging Currentat 120V Mains Input |
8 - 10 Amp Charging Current* (*Depends Upon Battery Voltage) |
| Change Over TimeMains to Back-Up (@ UPS Mode) |
≤ 10 msec |
| Change Over TimeBack-up to Mains (@ UPS Mode) |
≤ 10 msec |
| Change Over TimeMains to Back-up (@ Normal Mode) |
≤ 40 msec |
| Change Over TimeBack-up to Mains (@ Normal Mode) |
≤ 10 msec |
| Input Voltage Range(@ Normal Mode) |
90V - 300V ± 10V AC |
|
